Principle and application
Piezometers are instruments installed in the ground to measure pore pressure, the pressure of water in the soil pores, over time. Because a rise in pore pressure is one of the main causes of failure in dams and slopes, continuous readings give the early warning that the safety of the works requires.
Typical applications: dams, embankments on soft soil, slopes, excavations and mining.
The types in section

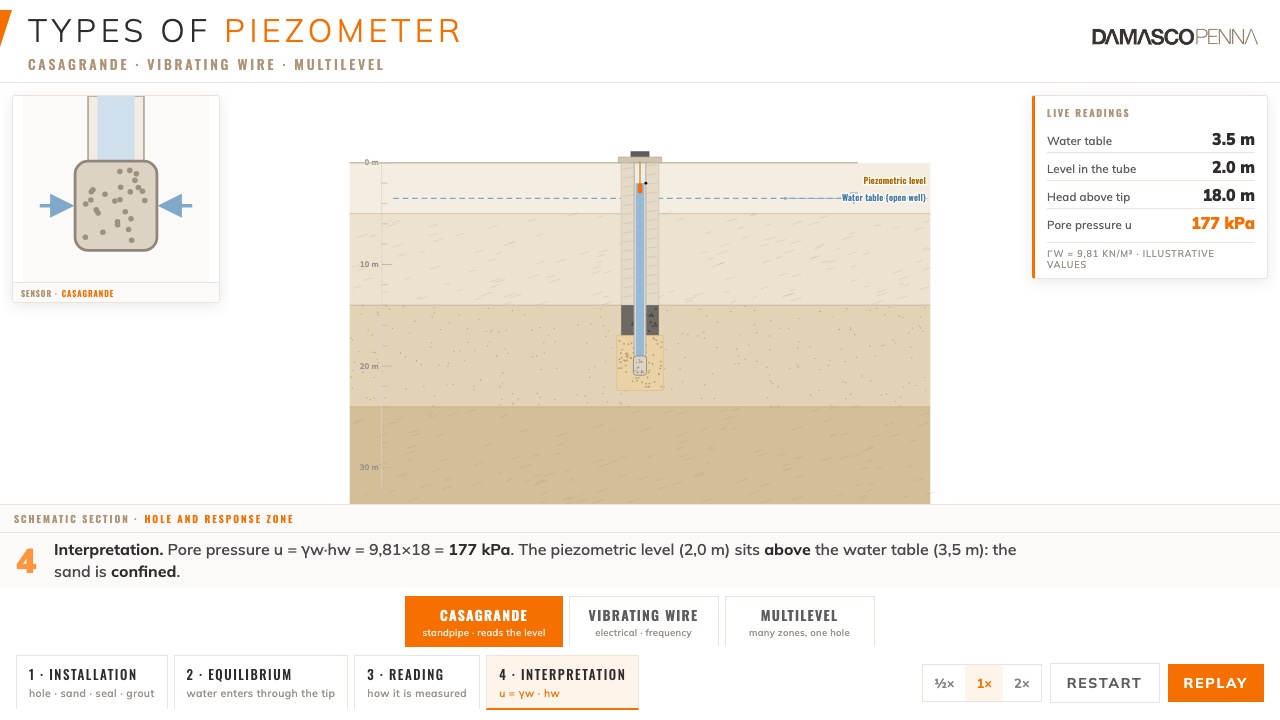

Interactive animation of the main piezometer types. Choose between the open-standpipe Casagrande, the vibrating-wire electrical sensor and the multilevel system, and follow in schematic section how each one isolates the response zone and measures pore pressure: from the water column rising in the tube to the frequency reading converted into kPa.
The test in stages
Borehole and installation
The piezometer is installed at the target elevation, with sealing between layers.
Sealing
Bentonite isolates the measured interval, ensuring readings from the correct layer.
Reading
Manual or automatic, producing the pore pressure time series.
Monitoring
Continuous follow-up with alert thresholds.
Quality controls: instruments calibrated and suited to the soil type, controlled sealing to isolate the measured layer, readings recorded and traceable and installation by a crew trained in instrumentation.
In terms of pore pressure
| Pore pressure | Pressure of water in the soil pores |
|---|---|
| Time series | Evolution over time |
| Piezometric level | Hydraulic head at the installed elevation |
| Alerts | Monitored safety thresholds |
| As-built | Installation profile with elevations and seals |
| Readings | Pore pressure time series |
| Layout | Position of the instruments |
| Typical lead time | According to the number of instruments |
Performed to the same QA/QC, safety and site standard as every Damasco Penna service, described in Quality and field operations.
Frequently asked questions about piezometers
What are piezometers used for?
Piezometers are instruments installed in the ground to measure pore pressure, the pressure of water in the soil pores, over time. Because a rise in pore pressure is one of the main causes of failure in dams and slopes, continuous readings give the early warning that the safety of the works requires.
Why measure pore pressure?
Because rising pore pressure reduces soil strength and is one of the main causes of failure in dams and slopes. Monitoring it gives the early signal to act.
Which piezometer to use?
It depends on the soil and the response required, from open standpipe (Casagrande) to vibrating wire. The choice is part of the instrumentation design.
